BR4600

  • Cast aluminum throttle lever for professional and durable control
  • Integrated lifting bale for safe loading and unloading
  • Full roll cage and cast aluminum belt cover for clutch and engine protection
COMPACTION

BR4600

  • Cast aluminum throttle lever for professional and durable control
  • Integrated lifting bale for safe loading and unloading
  • Full roll cage and cast aluminum belt cover for clutch and engine protection
Build Your Package

Product Description

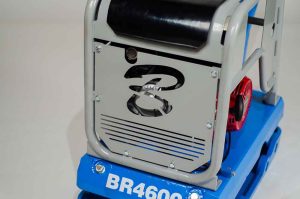

The BR4600 Reversible Compactor is built for medium to large applications. Equipped with either a Honda GX390 or Yanmar Diesel engine, it has the power and force to effectively compact deep base material. The fully hydraulic reversing mechanism sets the Bartell line of reversible compactors apart from the competition, providing more flexible maneuverability for forward, backward, and spot-on compaction.

  • Cast aluminum throttle lever for professional and durable control
  • Integrated lifting bale for safe loading and unloading
  • Full roll cage and cast aluminum belt cover for clutch and engine protection
  • Ductile iron bases for increased strength
  • Optional extension plates further increase production rates
  • Full speed in both forwards and reverse
  • Specialized for compacting sand, trench, and patching
  • Diesel model offers key start or recoil start

Technical Specifications


Engine Type Honda GX390 Yanmar L100W
Power Output 11.7hp (8.7kW) 9.3hp (6.9kW)
Compaction Force 10141 lbf, 45kN, 4600 kgf
Max Travel Speed 72'/min (22m/min)
Length 62" (157cm)
Width 19" (48cm)
Height 37" (93cm)
Weight 672 lbs (305kg) 719 lbs (326kg)
Plate Size 19" x 34" (49cm x 86cm)
