BXR836

  • Small footprint and responsive steering provide maneuverability in tight spots
  • Equipped with gasoline or propane engine
  • Heavy-duty gearbox provides longer life and less maintenance
SKU: BXR836-BASE Category: Tags: ,
RIDE-ON TROWELS

BXR836

  • Small footprint and responsive steering provide maneuverability in tight spots
  • Equipped with gasoline or propane engine
  • Heavy-duty gearbox provides longer life and less maintenance
Build Your Package

Product Description

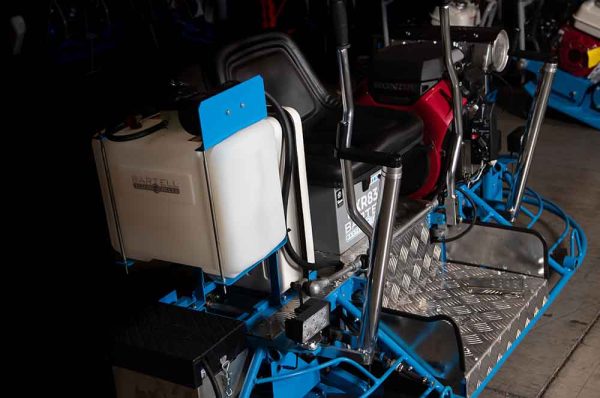

At just 728lbs, and very compact dimensions, this unit can be transported with ease and placed on a slab very early in the process. Great for getting into tight areas and for use where stickups are present.

The BXR836 is also great for multi-story applications due to its ease of hoisting. With its low profile, this unit gives the best sight-line of the slab and you can feel the concrete as it progresses in its finish transition.

The BXR836 is the perfect jump to riding, for those currently only walking.

  • Equipped with gasoline or propane engine
  • Heavy-duty gearbox provides a longer life and less maintenance
  • Twin stick, multi-directional levers deliver immediate, responsive steering
  • Low profile provides excellent visibility
  • Non-overlapping design for floating/panning
  • Dual 4 blade trowel standard

Technical Specifications

Blade Configuration Panning & Finishing (Non-Overlapping)
Engine Type Gas Honda GX690 Propane Vanguard 627cc
Power Output 22hp (16kW) 21hp (15.7kW)
Blade RPM 145 130
Float Blade Size 10" x 14" (25cm x 36cm)
Finish Blade Size 6" x 14" (15cm x 36cm)
Combo Blade Size 8" x 14" (20cm x 36cm)
Float Pan 36.5" (93cm)
Weight 615lbs (279kg) 635lbs (288kg)
Operating Weight 650lbs (295kg) 655lbs (297kg)
Length 73" (186 cm)
Width 38.5" (98cm)
Height 41" (104cm)
