RIDE-ON TROWELS

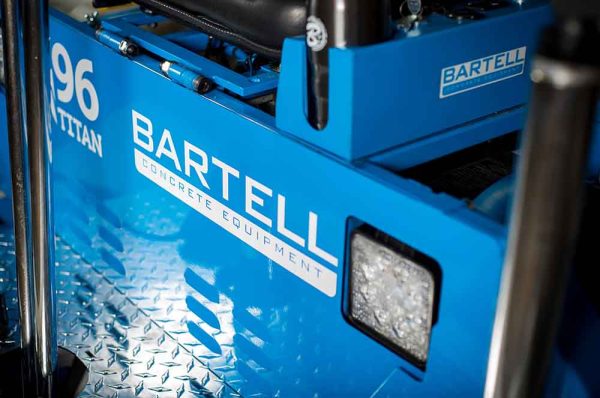

Titan96

Equipped with gasoline or propane engine
6" lower to the ground than previous models
19" height from bottom of foot to seat

Build Your Package

Product Description

Our line of TITAN Ride-On concrete trowels have evolved over decades of research, testing, expert engineering and contractor feedback direct from the slab. We machine the tightest tolerances in the industry, which gives the Bartell Titan trowel arms more rigidity, better balance, and less demand for maintenance and repairs. We rely on this precision to allow for a lighter machine that is effective without needing the extra weight that many others use to compensate for poor design.

The TITAN comes in three sizes (78, 88, 96 inches), with several choices of engines, including hydraulic and propane options. Compatible with the iShine TPS system. Add concrete polishing to your list of services without adding the cost of an additional machine!

Models	TITAN 96
Blade Configuration	Panning & Finishing (Non-Overlapping)
Engine Type	Gas Vanguard 35 EFI	Gas Vanguard 37 EFI	Propane Vanguard 993cc
Power Output	35hp	37hp	35hp
Blade RPM	180
Float Blade Size	10" x 18" (25cm x 46cm)
Finish Blade Size	6" x 18" (15cm x 46cm)
Combo Blade Size	8" x 18" (20cm x 46cm)
Float Pan	46" (117cm)
Weight	904 lbs (410kg)
Operating Weight	940 lbs (427kg)
Length	96" (244cm)
Width	48" (122cm)
Height	46" (117cm)
