DFG250
- Single-head design with 10″/250mm diameter
- Powerful 3 phase electric, gas/petrol and diesel options
Excellent fit for rental fleet
SINGLE HEAD GRINDER
Build Your Package DFG250
- Single-head design with 10"/250mm diameter
- Powerful 3 phase electric, gas/petrol and diesel options
Excellent fit for rental fleet

Product Description

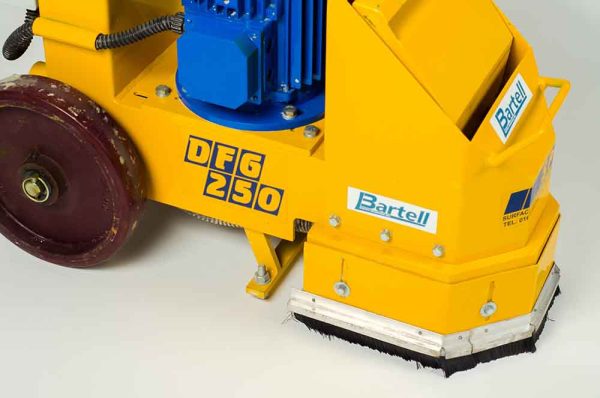

This effective diamond grinder gives the operator complete control, leveraging substantial weight directly onto the grinding heads for accurate and efficient grinding. Screw-action hand-wheel is a very helpful feature, which allows for a precise lockable setting, providing consistent, accurate grinding of any concrete surface.
Powerful machine suitable for a wide variety of grinding applications: Removal of old floor coatings, contaminates, latex and adhesives; and grinding/polishing of resin-based and tiled terrazzo
- Single-head design with 10"/250mm diameter
- Powerful 3 phase electric, gas/petrol and diesel options
- Removable ballast weight helps ensure accurate grinding in all situations
- Simple foot pedal raises/lowers machine during use
- Anti vibration handlebar mounts
- 2"/50mm dust extraction port
- Dust free when used with SPE316 vacuum
- Large diameter wheels for excellent mobility and stability
- Simple adjustment to level to the floor surface
- Meets requirements of rental and contracting companies
- Fits easily in truck for easy transportation
- Fully compatible with the iShine Floor System
- Water can be applied to head for wet grinding
- Adjustable rear axle allows for two weighted settings
Technical Specifications
Engine/Motor | ELECTRIC | GAS |
---|---|---|
Voltage | 230V, 3-Phase | – |
Power Output | 10hp (7.4kW) | 11hp Honda |
Cycles | 60Hz | – |
Head Speed | 1400 rpm | |
Motor Speed | 2800 rpm | 1400 / 2800 rpm |
Length | 44.1" (112cm) | |
Width | 26.4" (67cm) | |
Height | 41" (104cm) | |
Weight | 352 lbs (160kg) | 268 lbs (122kg) |
Removable Weight | 1 x 44 lbs (20kg) |
